Jaw-Jaw Compactor Load Binder

Straight, heavy duty barrel
Jaw-Jaw end fittings
Entire assembly is powder coated
All load bearing fittings are forged
Quenched and tempered
Two piece handle
Designed for Solid Waste and Recycling Industries

View In Catalog

Email Page

Our Quality Philosophy

Specifications

STOCK NUMBER	TAKE-UP	BARREL LENGTH	HANDLE LENGTH	SCREW DIAMETER	JAW THROAT OPENING	BEARING TO BEARING (CLOSED-OPEN)	WORKING LOAD LIMIT (LBS.)	PROOF LOAD LIMIT (LBS.)	WEIGHT/ PIECE (LBS.)
CD12JJ	10″	12″	24″	1 3/8″	1 1/2″	21″ – 31″	28,000	56,000	30
CD16JJ	14″	16″	24″	1 3/8″	1 1/2”	22″ – 36″	28,000	56,000	34
CD24JJ	22″	24″	24″	1 3/8″	1 1/2”	33″ – 55″	28,000	56,000	45
CD18JJ1750	16″	18″	24″	1 3/4″	2.375”	28″ – 44″	42,000	84,000	58
CD24JJ1750	22″	24″	24″	1 3/4″	2.375”	34″ – 56″	42,000	84,000	64

STOCK NUMBER

TAKE-UP

BARREL LENGTH

HANDLE LENGTH

SCREW DIAMETER

JAW THROAT OPENING

BEARING TO BEARING (CLOSED-OPEN)

WORKING
LOAD LIMIT
(LBS.)

PROOF
LOAD LIMIT
(LBS.)

WEIGHT/
PIECE
(LBS.)

CD12JJ

10″

12″

24″

1 3/8″

1 1/2″

21″ – 31″

28,000

56,000

CD16JJ

14″

16″

24″

1 3/8″

1 1/2”

22″ – 36″

28,000

56,000

CD24JJ

22″

24″

1 3/8″

1 1/2”

33″ – 55″

28,000

56,000

CD18JJ1750

16″

18″

24″

1 3/4″

2.375”

28″ – 44″

42,000

84,000

CD24JJ1750

22″

24″

1 3/4″

2.375”

34″ – 56″

42,000

84,000

Category

Jaw-Jaw Compactor Load Binder

Specifications

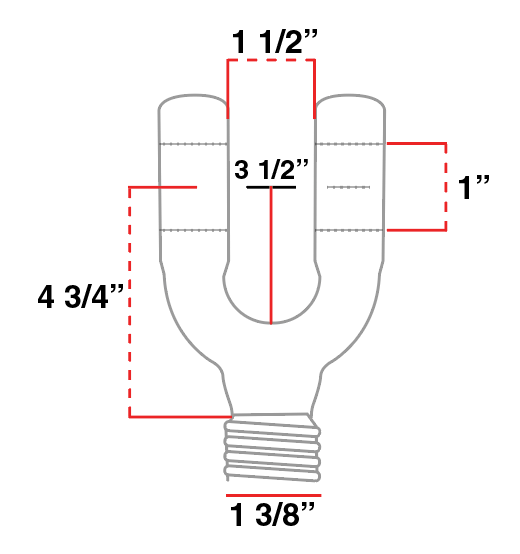

Dimensions
